1. Overview

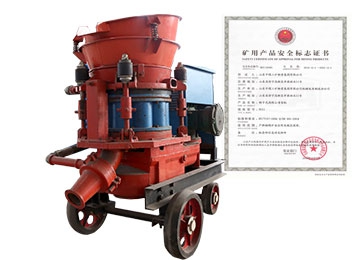

A concrete spraying machine (also known as a shotcrete machine or concrete sprayer) is a construction device used to apply concrete or mortar at high velocity onto surfaces. This method, known as shotcreting, is widely used in tunneling, slope stabilization, swimming pool construction, and structural repairs.
2. Types of Concrete spraying machines
There are two main types of concrete spraying machines based on the application process:
(1) Dry-Mix spraying machine
Process: Dry concrete mix is fed into the machine, and water is added at the nozzle.
Advantages:
Longer hose distance (suitable for large projects).
Faster application.
Lower rebound rate for certain mixes.
Disadvantages:
Requires skilled operators for proper water control.
Higher dust generation.
(2) Wet-Mix spraying machine
Process: Pre-mixed wet concrete is pumped and sprayed through a hose.
Advantages:
More consistent mix quality.
Less dust and rebound.
Easier to control for uniform application.
Disadvantages:
Limited hose length.
Requires a continuous supply of ready-mix concrete.
3. Key Components
A typical concrete spraying machine consists of:
Hopper: Feeds dry or wet mix into the system.
Pump System: Delivers the mix through hoses.
Nozzle: Where water (for dry mix) or air is added for spraying.
Control Panel: Adjusts pressure, flow rate, and spray pattern.
Compressor: Provides air pressure for spraying.
4. Applications
Concrete spraying machines are used in:
Tunneling & Mining (ground support, lining).
Slope Stabilization (landslide prevention).
Swimming Pools & Water Tanks (waterproofing).
Repair Works (bridge, dam, and structural rehabilitation).
Architectural & Decorative Concrete (sculptures, facades).
5. Advantages of Using Concrete Sprayers
High-Speed Application: Faster than traditional pouring.
Strong Adhesion: Bonds well with existing structures.
Versatility: Suitable for complex shapes and overhead work.
Reduced Formwork Need: Minimizes labor and material costs.
8. Conclusion
Concrete spraying machines are essential for modern construction, offering efficiency and durability in challenging applications. Choosing between dry-mix and wet-mix depends on project requirements, material availability, and operator expertise.
