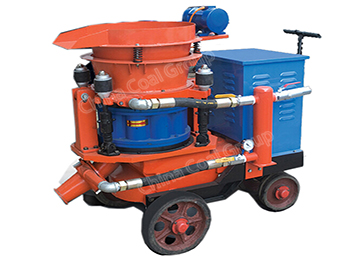

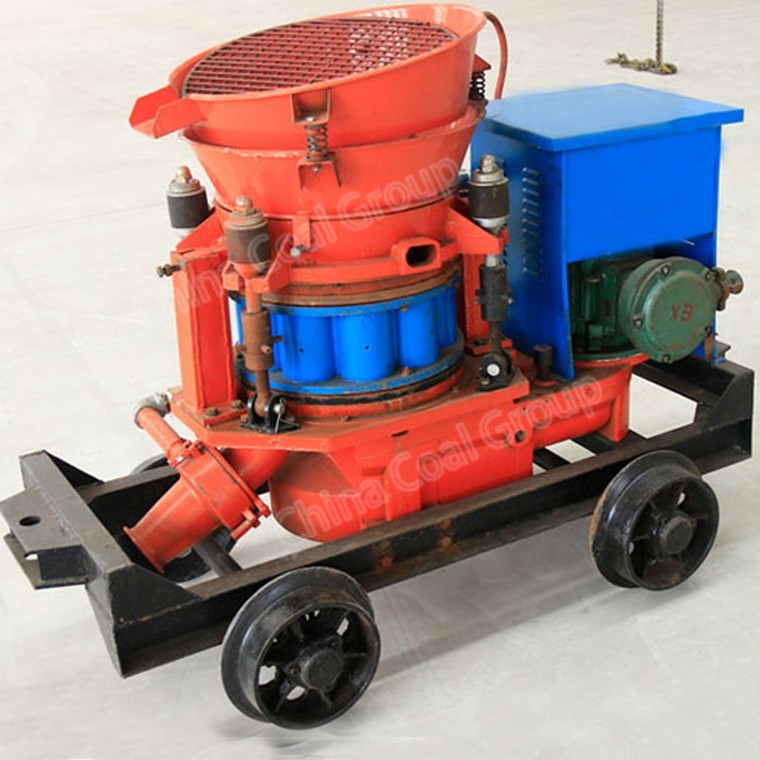

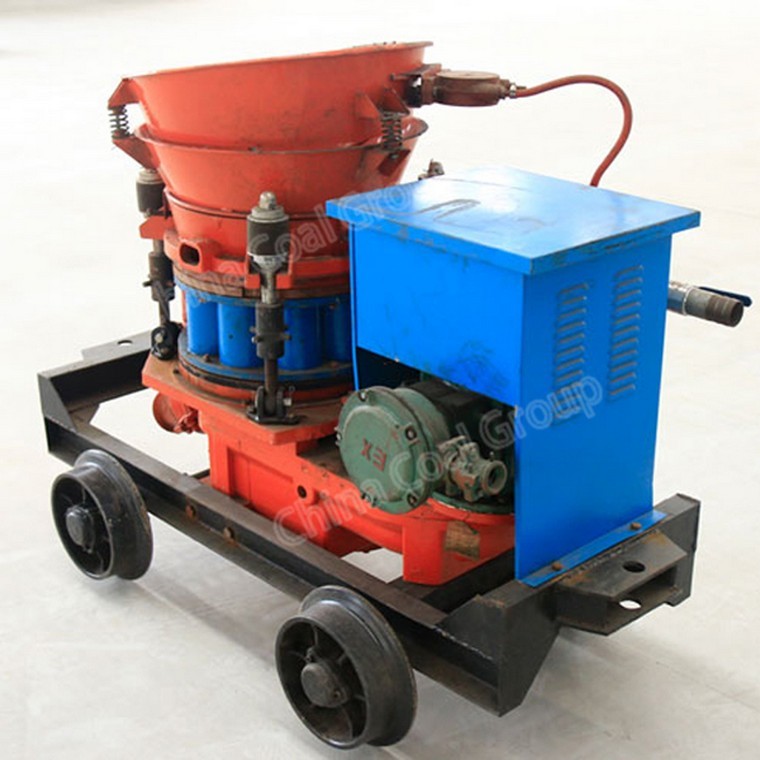

1. PZ-5B Explosion-proof Shotcrete Machine adopt through type rotary, so that can fulfill non-sticky, unobstructed discharging operation, finally get advantages of high efficiency and time-saving.
Contact Us Product Center1. PZ-5B Explosion-proof Shotcrete Machine adopt through type rotary, so that can fulfill non-sticky, unobstructed discharging operation, finally get advantages of high efficiency and time-saving.
2. Four-point clamping device makes it easy to adjust the press between sealing plate and rotor disk so as to reduce air and dust leak and prolong consumption parts life.,
3. Using low-tension, high-speed vortex pneumatic transportation, so the spraying flow is even, continuous and steady. It's good to improve the shotcrete quality.
4. The new nozzle, discharge elbow device, improving spray deposition effect, less resilient, high quality shotcrete.
MAIN PARAMETER OF|
Item |
PZ-5B |
|
Output |
5m3/h |
|
Max. convey dist |
Horizontal:200m Vertical: 20m |
|
Water cement ratio |
≤0.4 |
|
Max. Aggregate. size |
20mm |
|
Hose inner size |
51mm |
|
Operating air pressure |
0.4~0.6MPa |
|
Air consumption |
7-8 m3/min |
|
Rotor diameter |
438mm |
|
Motor power |
Y132m-6-5.5(KW) |
|
Voltages |
380v or as your requirement |
|
Overall dimension(mm) |
1600X700X1150 |
|
Whole weight |
800kgs |
