PZ-3 type Gunite Machine is widely used in engineering construction, mines, tunnels, culverts, subways, hydropower projects, underground engineering and coal mines.

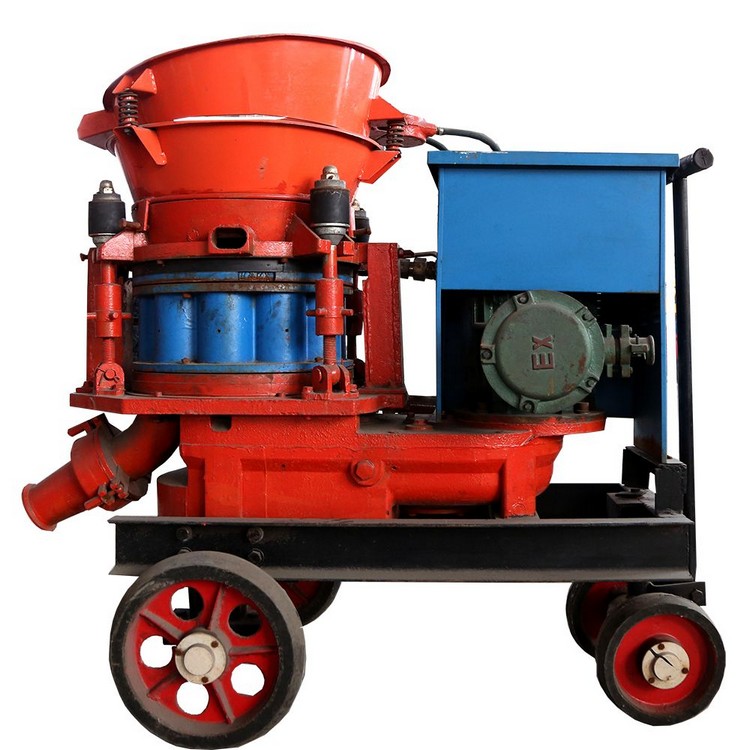

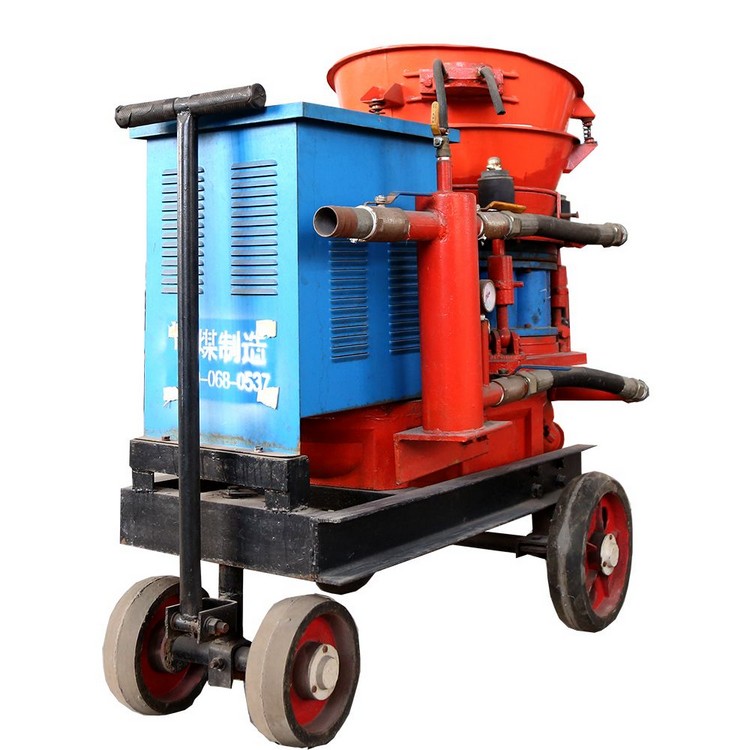

Contact Us Product CenterPZ-3 PZ-3 Dry Mix Shotcrete Gunite Machine is widely used in engineering construction, mines, tunnels, culverts, subways, hydropower projects, underground engineering and coal mines, coal mine roadways, sprayed concrete construction operations; various types of industrial furnaces, furnace linings, refractory materials spray molding Or repair; soil transportation and spraying during various slope protection and greening construction.
Product Features of PZ-3 Dry Mix Shotcrete Gunite Machine
(1) Straight-through rotor type non-bonded material cavity, smooth discharge, high efficiency and time saving;
(2) Four-point elastic compensation and compaction, good sealing effect, less dust near the machine, and long life of wearing parts;
(3) Adopt low-pressure and high-speed vortex airflow to overcome the problems of material sticking, tube blocking and pulse deflection during material transportation, and the material flow is uniform, continuous and stable;
(4) The new spray head and discharge elbow device can improve the spraying effect, less rebound, and high spray layer quality.
|
Spray capacity |
3/h |
|
Transmission distance |
200m |
|
Aggregate size |
10mm |
|
Water-cement ratio |
Less than 0.4 |
|
Inner diameter of conveying pipe |
42/50mm |
|
Working pressure |
0.2-0.6mpa |
|
Wind consumption |
5-6/min |
|
Driving power |
3kw |
|
Voltage level |
380/660/1140v |
