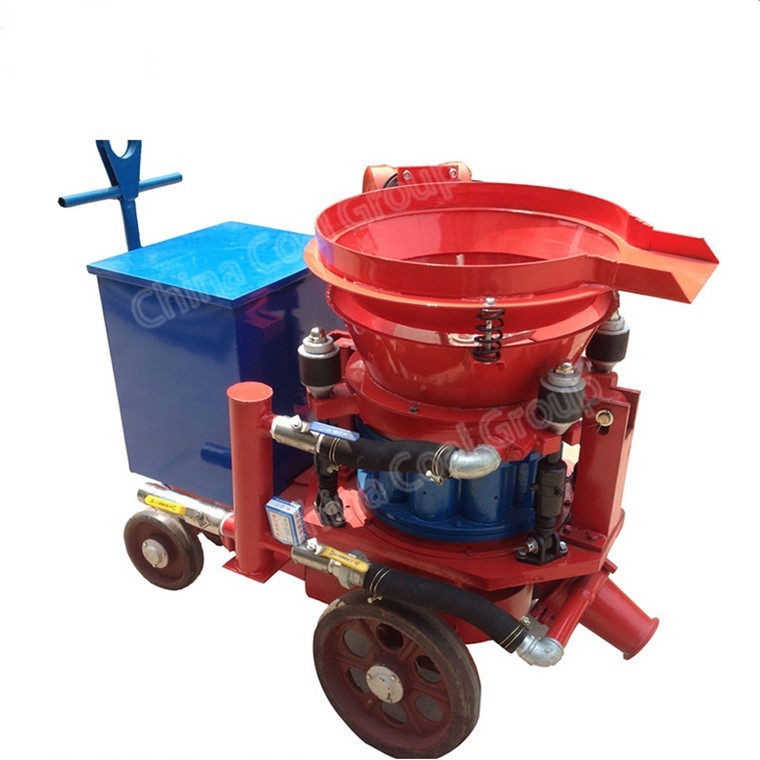

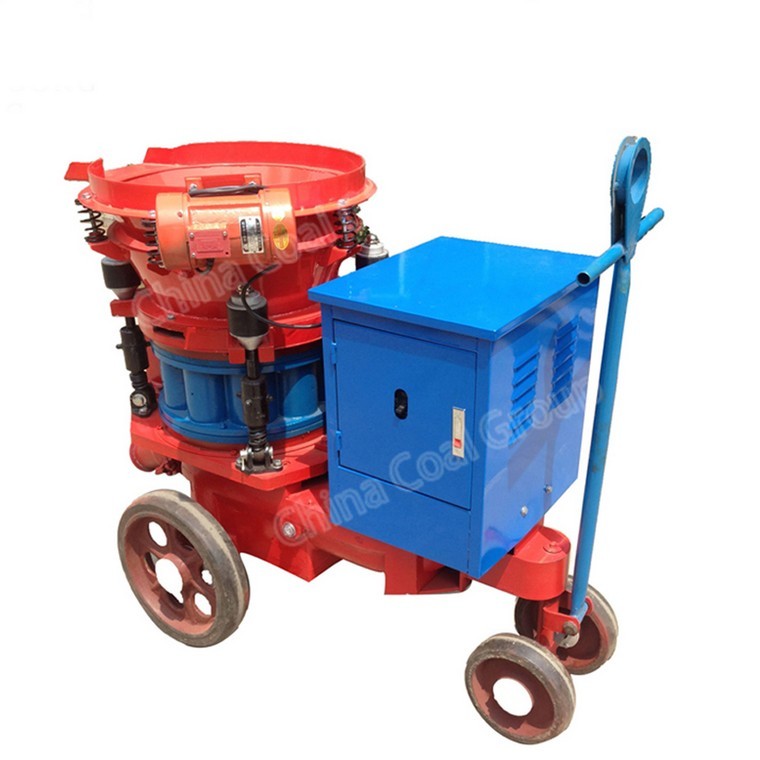

1. PZB Series Explosion Proof Shotcrete Machine is a high-effective shotcrete machine,which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
Contact Us Product Center1. PZB Series Explosion Proof Shotcrete Machine is a high-effective shotcrete machine,which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
2. Nonadhesion going through rotor with new material chamber, completely eliminate Shotcrete Machine Suppliers PZB Explosion Proof Shotcrete Machine bonding and blocking during operation so as to reduce clearance and maintenance period.
3. The PZB explosion-proof shotcrete machine has a four-point clamping device that can easily adjust the pressure between the sealing plate and the rotary table, avoid air and dust leakage, and extend the life of consuming components.
4. The PZB explosion-proof shotcrete machine adopts a vortex flow conveying method, making the spray flow uniform, continuous, and stable, improving the quality of shotcrete.
MAIN PARAMETER OF|
Item |
PZ-3B |
PZ-5B |
PZ-7B |
|
Output |
3.5m3/h |
5m3/h |
7m3/h |
|
Max. convey dist |
Horizontal:200m Vertical: 20m |
Horizontal:200m Vertical: 20m |
Horizontal:200m Vertical: 20m |
|
Water cement ratio |
≤0.4 |
≤0.4 |
≤0.4 |
|
Max. Aggregate. size |
10mm |
20mm |
20mm |
|
Hose inner size |
50mm |
51mm |
64mm |
|
Operating air pressure |
0.2~0.6MPa |
0.4~0.6MPa |
0.4~0.6MPa |
|
Air consumption |
5-6 m3/min |
7-8 m3/min |
8-10 m3/min |
|
Rotor diameter |
400mm |
438mm |
480mm |
|
Motor power |
3kW(4hp) |
Y132m-6-5.5(KW) |
Y160m-6-7.5KW |
|
Voltages |
380v or as your requirement |
380v or as your requirement |
380v or as your requirement |
