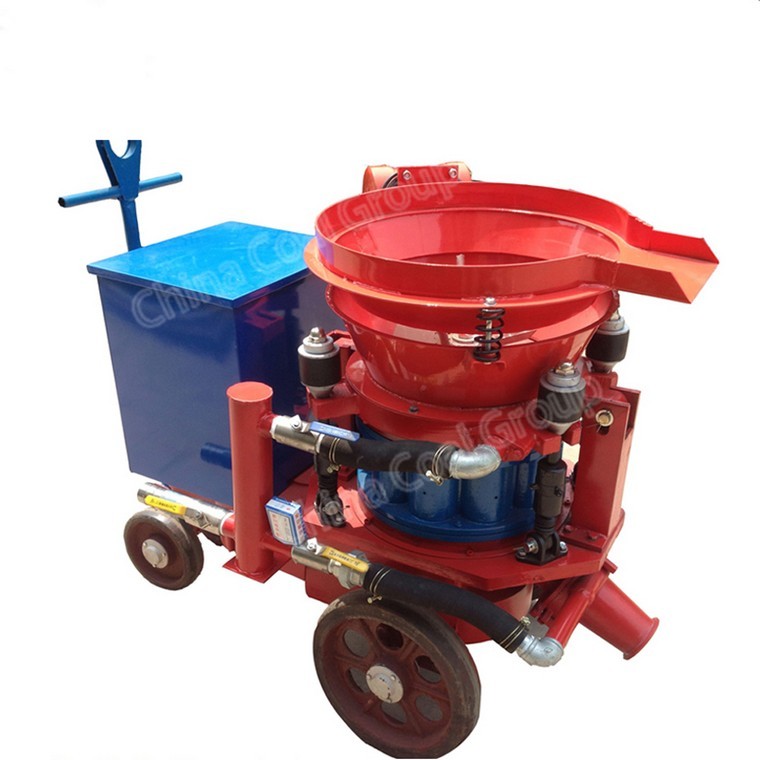

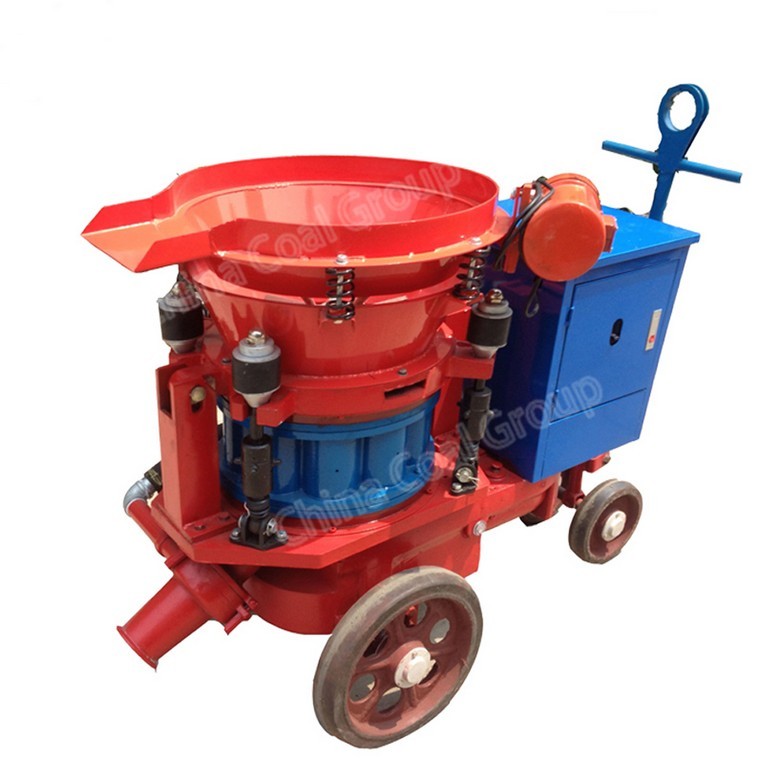

PZ-5 Dry Mix Shotcrete Machine is the most ideal device for the concrete anchor spray construction, wet spray and moist spray. And be widely used for the anchor spray supporting construction in tunnel
Contact Us Product CenterPZ-5 Dry Mix Shotcrete Machine is the most ideal device for the concrete anchor spray construction, wet spray and moist spray. And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. And uniquely-made rubber bushing block on the swirler benefits mixture delivery. PZ-5 Dry Mix Shotcrete Machine has stable performance, is convenient for maintenance, saves energy, has a long service life, protects environment, and improves the spraying layer quality. Our Construction Gunite Machine advantages as follows:
1.PZ-5 Dry Mix Shotcrete Machine has excellent performance.
2.PZ-5 Dry Mix Shotcrete Machine—Tightly compact,attractive appearance.
3.PZ-5 Dry Mix Shotcrete Machine has stable and durable,easy to operate and maintain.
4.Construction Gunite Machine—Applicable for all kinds of working environment.
5.Construction Gunite Machine PZ-5 Dry Mix Shotcrete Machine mainly used for tunnel,underground work,slope protection and other concrete construction.
MAIN PARAMETER OF
|
Model |
PZ-5 Dry Mix Shotcrete Machine |
|
Capacity (m3/h) |
5 |
|
Max. Conveying Distance (Horizontal,Vertical m) |
200,20 |
|
Use material ratio(Cement/Sand) |
2001-3-5 |
|
Use material water-cement ratio |
≤0.4 |
|
Max. Aggregate Diameters (mm) |
20 |
|
Feeding pipe inner diameters(mm) |
51 |
|
Rotor Diameter(mm) |
438 |
|
Working pressure (MPa) |
0.4-0.6 |
|
Air consumption (m3/min) |
7-8 |
|
Motor Model |
Y132-6-5.5KW |
|
Voltage(V) (according to customer's special requirement) |
380,660,etc |
|
Overall size (mm) |
1280*700*1280 |
|
Overall weight (kg) |
600 |
