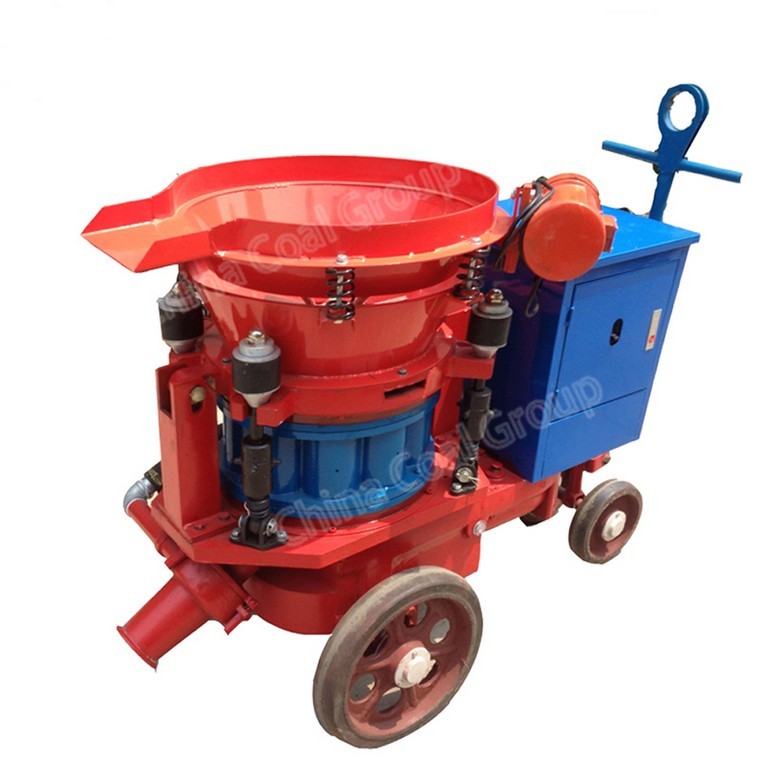

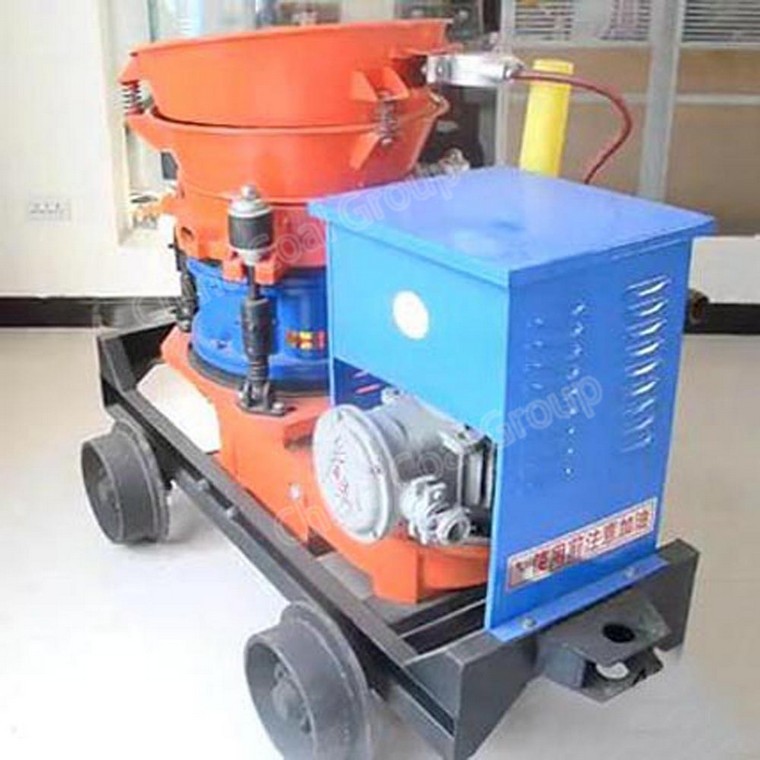

Electric Dry Mix Shotcrete Machine can be used for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc. Artificial soil seeding for no soi
Contact Us Product CenterElectric Dry Mix Shotcrete Machine can be used for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns’ inner liner.
The characteristics as follows:
(1)Efficient electric motor
(2) Perfect hermetic function and longer serviceable life
(3) Material flow uniformity stable
(4)Improved performance and high quality
MAIN PARAMETER OF|
Model |
PZ-7 |
|
Capacity (m3/h) |
7 |
|
Max. Conveying Distance (Horizontal,Vertical m) |
200,20 |
|
Use material ratio(Cement/Sand) |
2001-3-5 |
|
Use material water-cement ratio |
≤0.4 |
|
Max. Aggregate Diameters (mm) |
20 |
|
Feeding pipe inner diameters(mm) |
64 |
|
Rotor Diameter(mm) |
480 |
|
Working pressure (MPa) |
0.4-0.6 |
|
Air consumption (m3/min) |
8-10 |
|
Motor Model |
Y132-6-7.5KW |
|
Voltage(V) (according to customer's special requirement) |
380,660,etc |
|
Overall size (mm) |
1500*700*1280 |
|
Overall weight (kg) |
700 |
