PZ-7B Explosion Proof Dry-Mix Mortar Spray Machine is a dry concrete shotcrete machine. This kind shotcrete machine uses the compressed air to convey or high-speed jet concrete mix with a certain prop

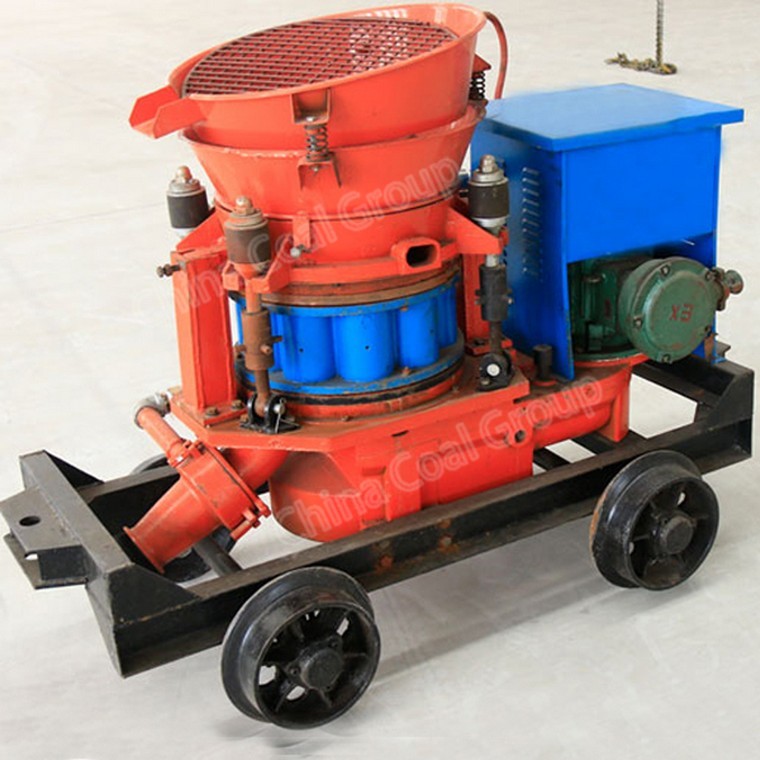

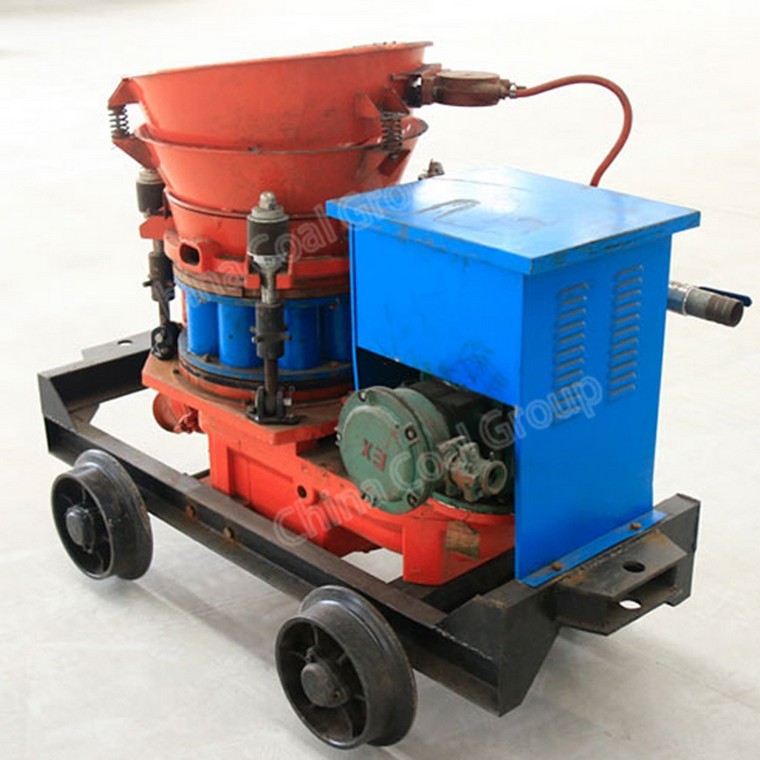

Contact Us Product CenterPZ-7B Explosion Proof Dry-Mix Mortar Spray Machine is a dry concrete shotcrete machine. This kind shotcrete machine uses the compressed air to convey or high-speed jet concrete mix with a certain proportion to the surface through the pipelines. The concrete mix on the surface set and harden to form concrete support layer. In recent years, shotcrete technology with a simple process, an unique effect, the economic cost and fast construction speed, is widely used in construction, rail and road tunnel construction, mine development, slope reinforcement and other fields.
MAIN PARAMETER OF|
Item |
PZ-7B |
|
Output |
7m3/h |
|
Max. convey dist |
Horizontal:200m Vertical: 20m |
|
Water cement ratio |
≤0.4 |
|
Max. Aggregate. size |
20mm |
|
Hose inner size |
64mm |
|
Operating air pressure |
0.4~0.6MPa |
|
Air consumption |
8-10 m3/min |
|
Rotor diameter |
480mm |
|
Motor power |
Y160m-6-7.5KW |
|
Voltages |
380v or as your requirement |
|
Overall dimension(mm) |
1600X700X1150 |
|
Whole weight |
900kgs |
