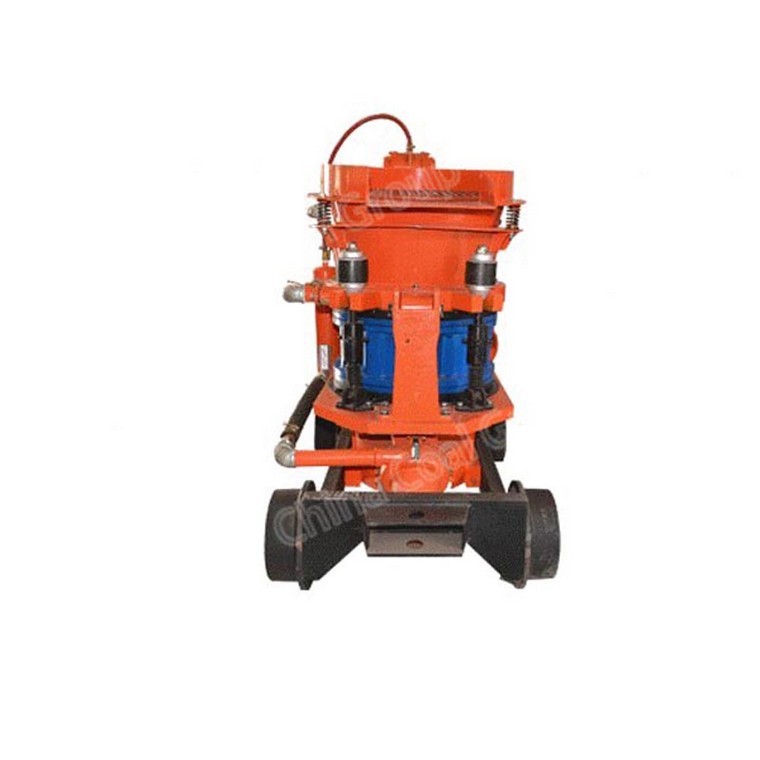

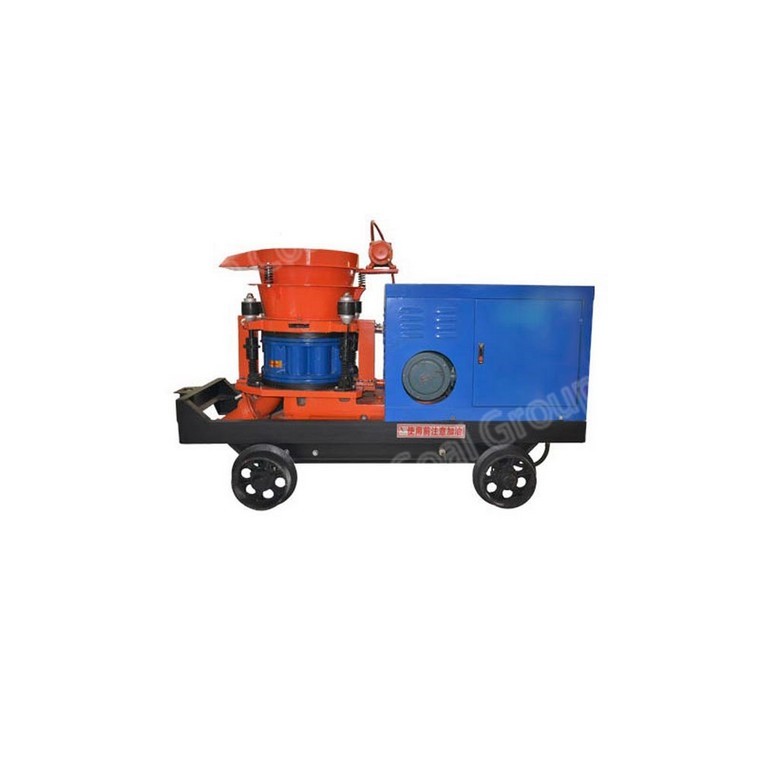

HSP-5B Mining Explosion-proof Wet Shotcrete Machine is widely used or spraying half wet or wet concrete In coal mine, tunnels, culverts, subway, underground engineering and other narrow space. It has
Contact Us Product CenterHSP-5B Mining Explosion-proof Wet Shotcrete Machine is widely used or spraying half wet or wet concrete In coal mine, tunnels, culverts, subway, underground engineering and other narrow space. It has the following advantages:
1.HSP-5B Mining Explosion-proof Wet Shotcrete Machine was designed with Anti-explosion Motor
2.special vibration hopper, reasonable four-point fastening mechanism, convenient accelerator adding system.
3.simple design, advanced technology, compact structure, convenient operation, maintenance and cleaning.
4.long conveying distance, fewer dusts, reliable performance.
MAIN PARAMETER OF|
item |
HSP-5B |
|
Output |
5 m³/H |
|
Max. Convey dist |
Horizontal:30m Vertical: 20m |
|
Concrete proportion |
1:4-5C/A |
|
Water cement ratio |
≤0.4 |
|
Hose inner size |
Φ51m |
|
Max. Aggregate size |
15mm |
|
Operating air pressure |
0.3-0.6MPa |
|
Air consumption |
10-15m³/min |
|
Rotor diameter |
438mm |
|
Spring rate level |
≤10% |
|
The accelerating liquid adding amount |
0.3-0.7% |
|
main Electric motor power |
Y132m-6-5.5KW |
|
Accelerating metering pump |
pneumatic |
|
Overall dimension(mm) |
1280x700x1280 |
|
Whole weight |
700kg |
|
Rail wheel gauge |
600mm(762or 900mm) |
