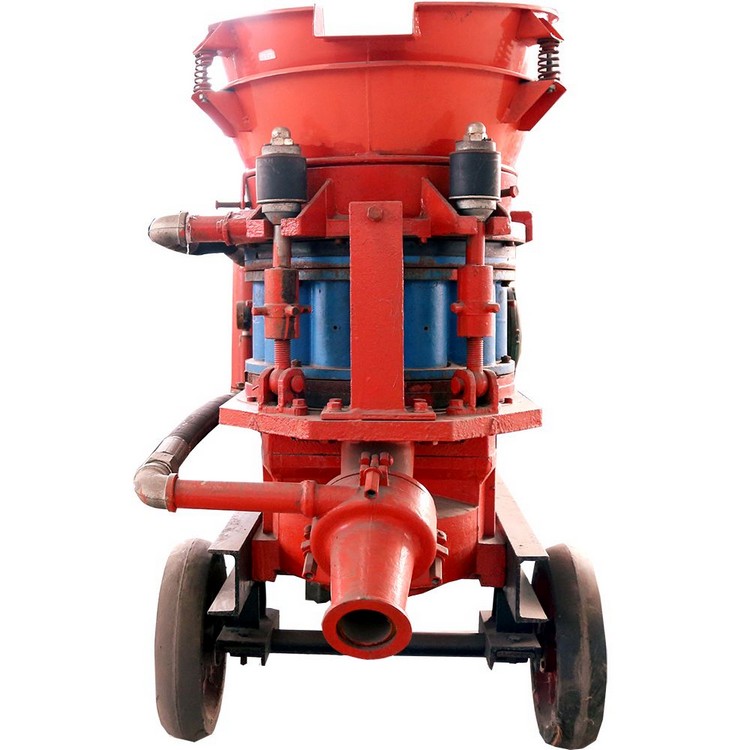

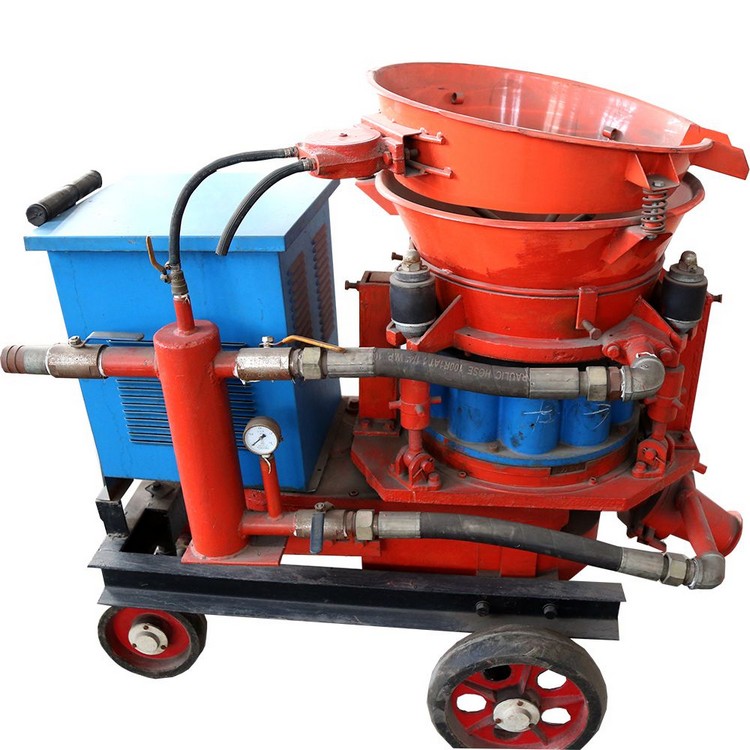

HSP-7B Explosion-proof Wet Mix Shotcrete Guniting Machine is a kind of Anti-explosion Concrete Gunite Machine(Shotcrete Machine) is specially used for Mining,also,we supply other types Shotcrete Machi
Contact Us Product CenterHSP-7B Explosion-proof Wet Mix Shotcrete Gunite Machine is a kind of Anti-explosion Concrete Gunite Machine(Shotcrete Machine) is specially used for Mining,also,we supply other types Shotcrete Machine for Wide Application,Including Wet Types and Dry Types,with different working capacity.
1. Environmental: HSP-7B Explosion-proof Wet Mix Shotcrete Guniting Machine can reduce the dust concentration around the machine and the spraying gun when the wet shotcrete machine work,so as to lower the harm to workers’ health.
2. rebound less to strengthen sprayed layer.
3. It can greatly improve the spray quality and the uniformity of concrete--because the water & cement ratio is easy to control when wet Shotcreting, and the concrete curing degree is higher.
4.Unique vibrating hopper feeds the concrete into the dosing system smoothly.
5.Standardized dosing pump can add exactly concrete accelerator.
6. We can change the color according to your actual requirements.
7. Custom the voltage motor based on your country.
8 .The tread of mine rail wheel have 600mm or 900mm for your choice.
|
item |
HSP-7B |
|
Output |
7m³/H |
|
Max. Convey dist |
Horizontal:30m Vertical: 20m |
|
Concrete proportion |
1:4-5C/A |
|
Water cement ratio |
≤0.4 |
|
Hose inner size |
Φ51m/64mm |
|
Max. Aggregate size |
15mm |
|
Operating air pressure |
0.4-0.6MPa |
|
Air consumption |
10-15m³/min |
|
Rotor diameter |
480mm(160) |
|
Spring rate level |
≤10% |
|
The accelerating liquid adding amount |
0.3-0.7% |
|
main Electric motor power |
Y160m-6-7.5KW |
|
Accelerating metering pump |
pneumatic |
|
Overall dimension(mm) |
2000X800X1300 |
|
Whole weight |
800kg |
|
Rail wheel gauge |
600mm(762or 900mm) |
