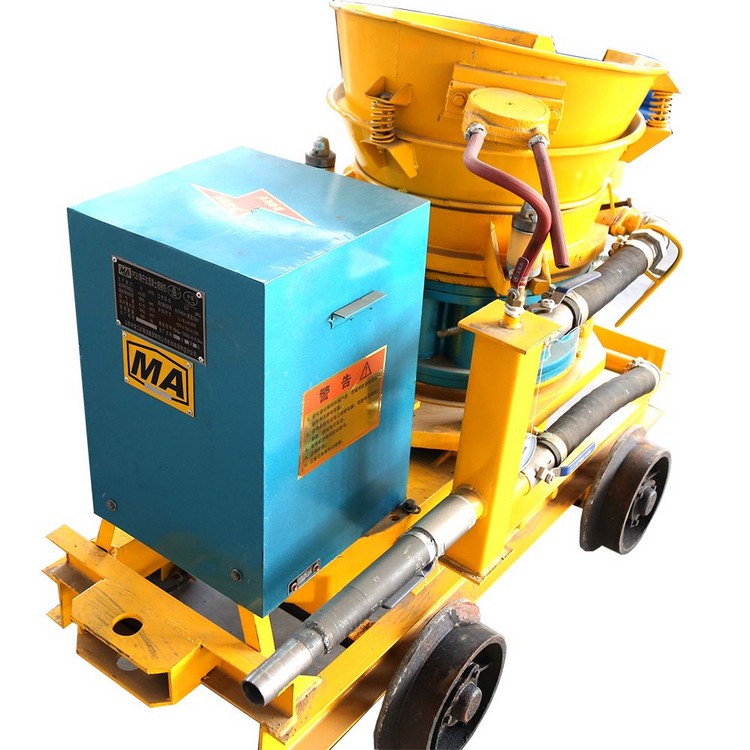

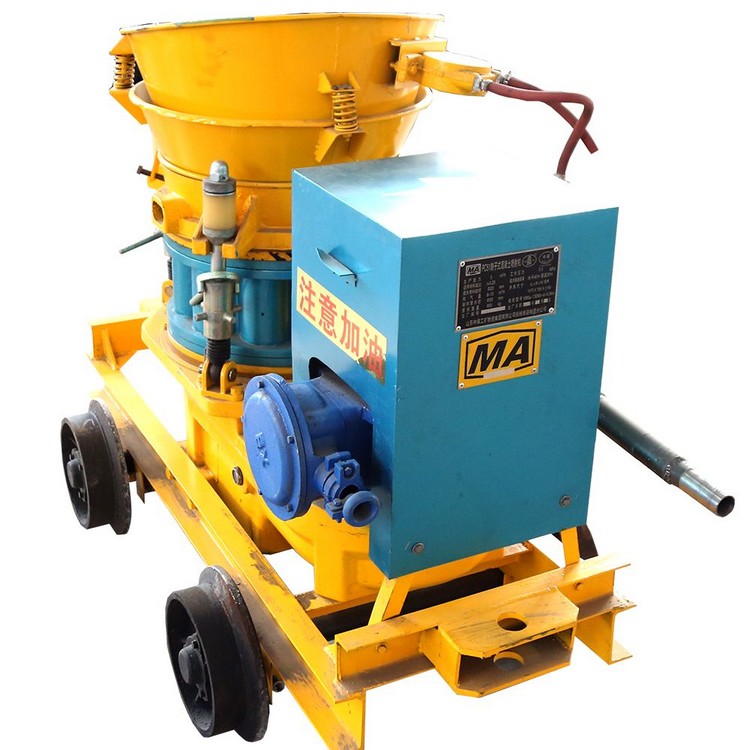

Construction Equipment China Coal PZ-5 shotcrete machine is widely used in engineering construction, mines, tunnels, culverts, subway, water and electricity engineering, underground engineering and co
Contact Us Product CenterConstruction Equipment China Coal PZ-5 shotcrete machine is widely used in engineering construction, mines, tunnels, culverts, subway, water and electricity engineering, underground engineering and coal moors mine laneway shotcrete.
Various types of industrial furnaces, lining refractory spraying forming or repair: all kinds of slope protection afforestation construction, soil and injection.
1. This is a high-effective shotcrete machine, which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
2. Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
|
Technical Parameters for dry concrete shotcrete machine |
||||
|
Model |
PZ-3 |
PZ-5 |
PZ-6 |
PZ-7 |
|
Production capacity |
3m3/h |
5m3/h |
6m3/h |
7m3/h |
|
The maximum transmission distance |
200m |
200m |
200m |
200m |
|
Applicable material proportioning: cement/sand |
1:3-5 |
1:4-5 |
1:4-5 |
1:4-5 C/A |
|
Applicable materials water-cement ratio |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
|
Max. Aggregate. size |
Φ20mm |
Φ20mm |
Φ20mm |
Φ20mm |
|
Transporting pipe inner |
Φ38mm |
Φ51mm |
Φ51mm |
Φ64mm |
|
Rotor block diameter |
350mm |
438mm |
438mm |
480mm |
|
Working air pressure |
0.4~0.6MPa |
0.4~0.6MPa |
0.4~0.6MPa |
0.4~0.6MPa |
|
Air consumption |
3-4 m3/min |
7-8 m3/min |
7-8 m3/min |
7-8 m3/min |
|
motor power |
5.5kw |
5.5kw |
5.5kw |
7.5kw |
|
Level of voltage |
380V |
380V |
380V |
380V |
|
The weight |
550kgs |
600kgs |
650kgs |
700kgs |
