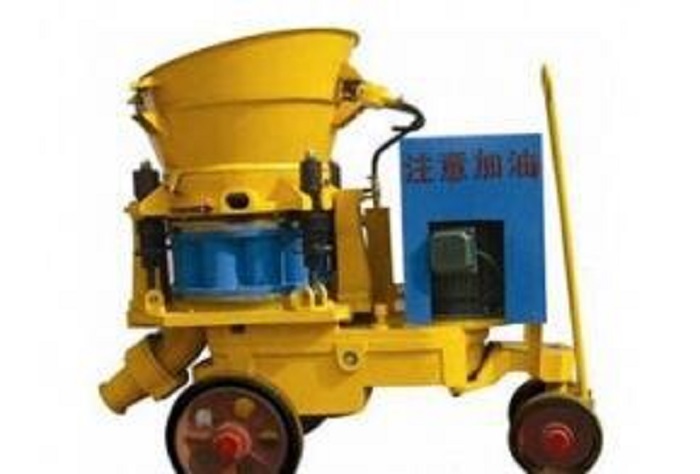

TK700 rotor concrete wet shotcrete machine adopts unique rotor piston cam feeding mechanism, which can realize the uniform and thin flow conveying of plastic concrete in the pipeline. It has the characteristics of reasonable design structure, stable performance, convenient operation and maintenance, and long service life.
Technical advantages of TK700 rotor concrete wet shotcrete machine
1. It has the characteristics of high efficiency, high performance (high performance of sprayed concrete, dense and homogeneous), high reliability, and low consumption.
2. The three material chambers of the wet shotcrete machine are fed simultaneously in the radial direction to achieve uniform and thin flow conveyance in the plastic concrete pipeline.
3. The metering pump is accurate and adjustable. The atomizing jet and the high-quality stream of the nozzle make the quick-setting agent and the concrete mix evenly.
4. The concrete wet shotcrete machine adopts anti-sticking technology, so that the piston inside the machine is forced to pump and feed, which solves the problem of sticking in the material cavity.
5. Unique structure and reliable performance.
TK700 rotor concrete wet shotcrete machine has high construction efficiency, effectively reducing springback, reducing dust, increasing the thickness of a spray layer, and improving the quality of sprayed concrete. It is widely used in mines, tunnels, culverts, subways, hydropower projects, underground engineering and slope protection. Wet shotcrete construction work.
